Container Lifting Trailer
Container Lifting Trailer knowledge
Things you should know about Container Lifting Trailer
If you are looking for container lifting trailer for sale, then this is the 100% right place for you. DTG Group (Since 1998) are professional on Container Lifting Trailer Manufacturer, we are base in China, and export to the whole world, specially Africa, mainly using for different dimension container lifting companies, such as 20ft, 40ft, 40HQ, 45HQ container, etc. Also, it can be lifting other types of products, you will see the information in this article.
If you just want a trailer Quotation, because you already know well about Container Lifting Trailer, then you can contact us directly by email: info@dreamtruegroup.com. Also, you are welcome to inquiry online here (on the page Right-Bottom Chat ~ just a simple click to start online).
We, DTG Group Trailer is different Container Lifting Trailer manufacturer’s factory in China. Mainly export to Africa countries for different kinds of products lifting, specially container. Of course, we also manufacture other types’ trailer. The export countries Such as Zambia, Tanzania, Kenya, Nigeria, Uganda, etc.
What is a Container Lifting Trailer?
Container Lifting Trailer, also called trailer for lifting containers, it is a specialized side lifter container trailer that is used to transport & hoist standard containers over long distances. No matter which country, it will have containers need to transport & lifting. That’s a big market for logistic & transport companies, you will earn lots of money after you enter into the Container Lifting Trailer transport business.
If you are already one of the transport Container Lifting Trailer company, then you’re already making the world become better & better.
Container Lifting Trailer pictures.
This picture is to show the brief process about how to lift container by our trailer. It also can be using to lifting other types too, not only containers. The method is similar.
Container Lift Trailer brief working show.
There are some pictures to show the Container Lifting Semi Trailer, of course, it can be designed as your request, if you have special request.
Brief Container Side Lifters drawing.
This is a simple drawing for your reference, it can be revised if you have special request.
Container Sidelifter Design Features.

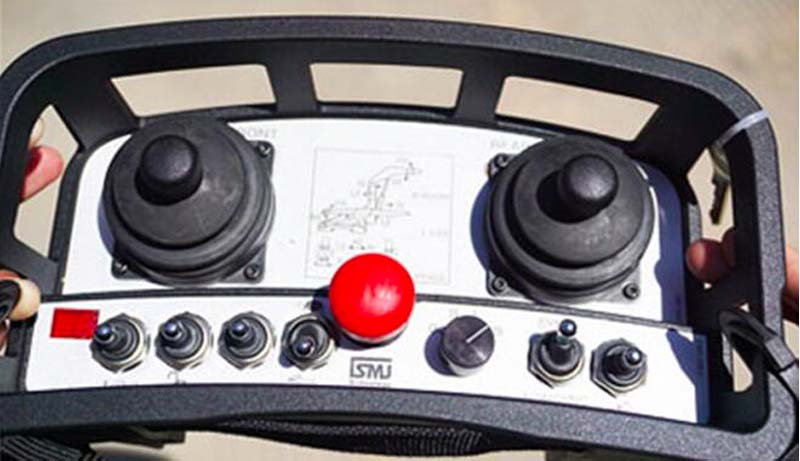

The Remote Control for container lift trailer.
The normal type container lift trailer Remote Control, it can have different outlook too.
If we are not very busy, we can manufacture more than 100 units / month for this Container Lifting trailer.
So cooperate with us is not problem, you don’t need to worry about delivery time at all, if you need other types’ trailer, such as container flatbed semi trailer, or others, the capacity is more, only need to tell us what you need, and remit the deposit to us, then let us arrange the whole rest job.
Functions show about Container Lifting Trailer.
1, for lifting containers, you already know it well now.
2, for machines (different types are available).
4, other types of products.
Do you have used container side lifter trailer ?
Sorry, we only manufacture new container side lifter trailer, don’t have used container side lifter trailer for sale. If you need used type, you can try to check your local market.
Container Lifting Trailer Specification.
Below is the brief Container Lifting Trailer specification for your reference only. It can be revised according to your special combilift container lifter trailer request.
Item
|
Unit
|
Parameters
|
Lifting Performance
|
Max. lifting capacity
|
kg
|
37,000
|
Max. Working range
|
mm
|
4,000
|
Max. Stabilizer outreach
|
mm
|
3,200
|
Weight
|
Curb mass
|
kg
|
14,500
|
Mass of side lifter
|
kg
|
7,250
|
Maximum gross mass
|
Ton
|
40 Ton
|
Dimension
|
Outline dimension of semi-trailer(L×W×H)
|
mm
|
14,100×2,500×4,000
|
Outline dimension of side lifter(L×W×H)
|
mm
|
1,020 ×2,500 ×2,490
|
Wheel base
|
mm
|
8,000+1,350+1,350
|
Track(front axle/rear axle)
|
mm
|
1,820/1,820/1,820
|
Front overhang / Rear overhang
|
mm
|
-/2370
|
Approach angle/Departure angle
|
°
|
-/16
|
Engine
|
Model
|
——
|
Kubota or others V2403-M-DI-E3B-CSL-1
|
Power/rotation speed
|
kW/r/min
|
36.5/2600
|
Emission standard
|
——
|
Off-road, Euro 3
|
Shipping method for 40 foot container semi trailer.
It’s normally using RO-RO /Break Bulk shipping, because of the size of the trailer is bigger than container.
Order Your DTG Group Container Lifting Trailer.
As soon as you start using yours, you’ll be glad that chose DTG Group trailer. You’ll be even happier when you see the impressive resale value. Place your Container Lifting Trailer order today.
If you have any Trailer request, welcome to contact us anytime.
